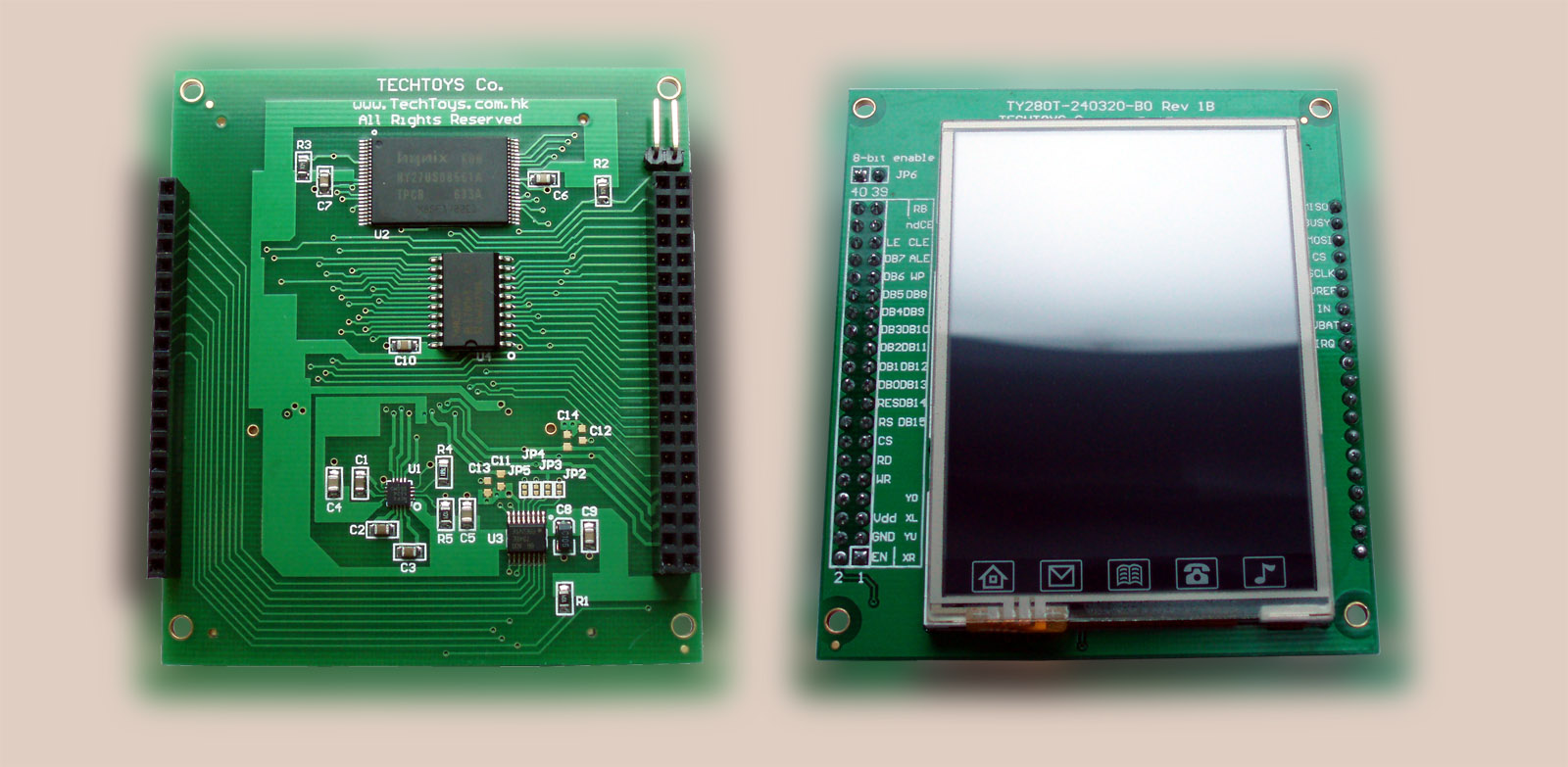

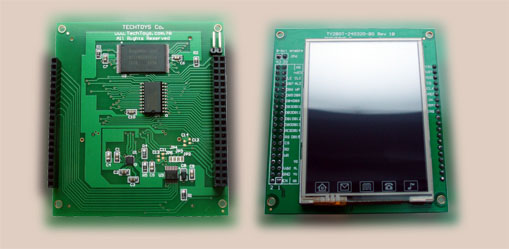

2.8" 262k TFT Color LCD module on PCB

2.8" QVGA 262k TFT-LCD module with Touch Panel integrated
240*RGB*320 pixels
16-bit interface for microcontrollers
Onboard data latch 74HC573 for 8-bit microcontroller interface
2.9-3.3V operating voltage
LCD driver is ILI9325 link
NCP5604A constant current DC-DC LED driver for backlight control
Driver compatible with Microchip Graphics Library link
Include a 32MB NAND Flash download for mass data storage
Resistive 4-wire Touch Panel integrated
ADS7846E Touch Panel controller included link
80mmx70mm, 1.6mm thickness FR-4 PCB
Standard 2.54mm pin-out for prototyping


Document & Software


Doc 01 Schematic (Rev 1B) 26 KB



Doc 02 Dimension 26 KB
Doc 03 Datasheet of LCD module 866 KB
Doc 04 User Guide (updated 3 Sept 08) 856 KB
Doc 05 Primitive graphic demo : Microchip GUI 925 KB
Doc 06 Touch Panel demo : Microchip GUI (updated 3 Sept 08) 1022 KB
Doc 07 8-bit addressing driven by PIC18LF4550 125 KB
Doc 08 Demo program for ARM NXP2103 150 KB
Doc 09 Make an MP3 project by Mr. Ohno (Japan) 425 KB
  Ohno's blog link
Doc 10 Source code and schematic for Doc 09 5,308 KB


Ordering

Item description 2.8" QVGA 262K TFT Color LCD Module with Touch Panel
Part number TY280T_240320_BO (Rev 1B)
Price US$79.00

Freight charge US$10 for registered air parcel for all countries

Ordering method Item out of stock


  *Standard shipping method is registered air parcel
  email us to order if you want to ship by EMS SpeedPost
