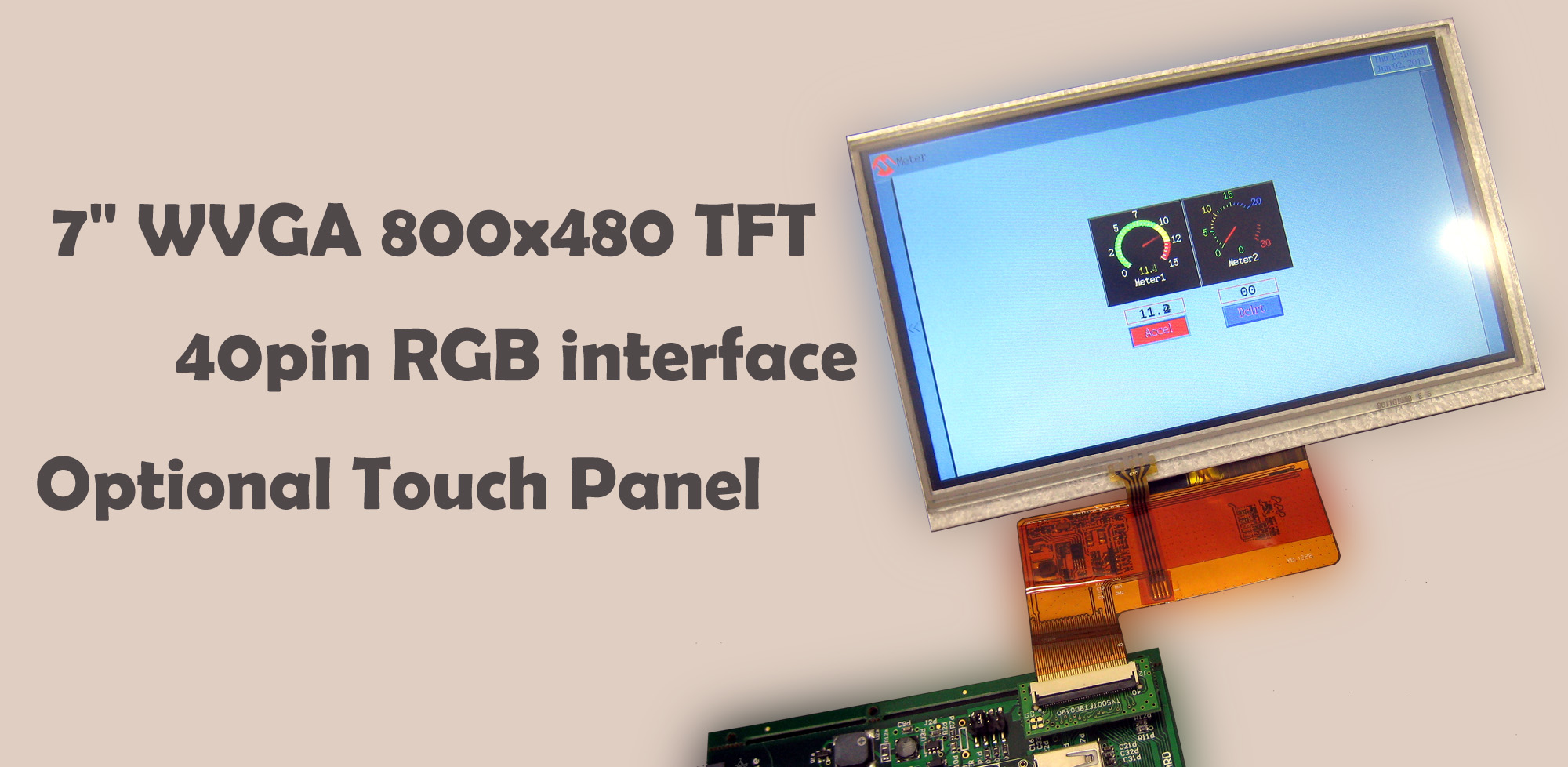

7" WVGA color TFT module

7" WVGA 16 million color TFT module
WVGA 800*RGB*480 pixels
40-pin RGB interface
Optional resistive 4-wire touch panel
LED backlight














Document & Software


Doc 01 DataSheet 184 KB
Doc 02 Example program driven by Microchip link
Doc 03 HX8264-D datasheet 2,605 KB
Doc 04 Development kits driven by SSD1963 R4A R4.1











Ordering

Order options
Item description 7" WVGA 16million color TFT-LCD module with Touch Panel
Part number TY700TFT800480_TP_Rev03
Price US$59.00

Remarks (important) New Touch Panel is fitted.
  Please read document here.
Item description 7" WVGA 16million color TFT-LCD module (no Touch Panel)
Part number TY700TFT800480_Rev03
Price US$49.00


Freight charge US$10 for registered air parcel for all countries
  *Standard shipping method is registered air parcel
  Shipping time varies from 2-4 weeks
  email us to order if a faster service by EMS required

Related Items Solomon SSD1963 Evaluation platform link
