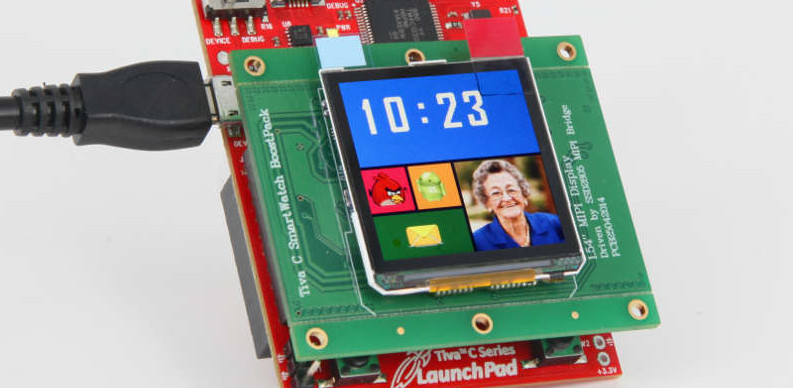

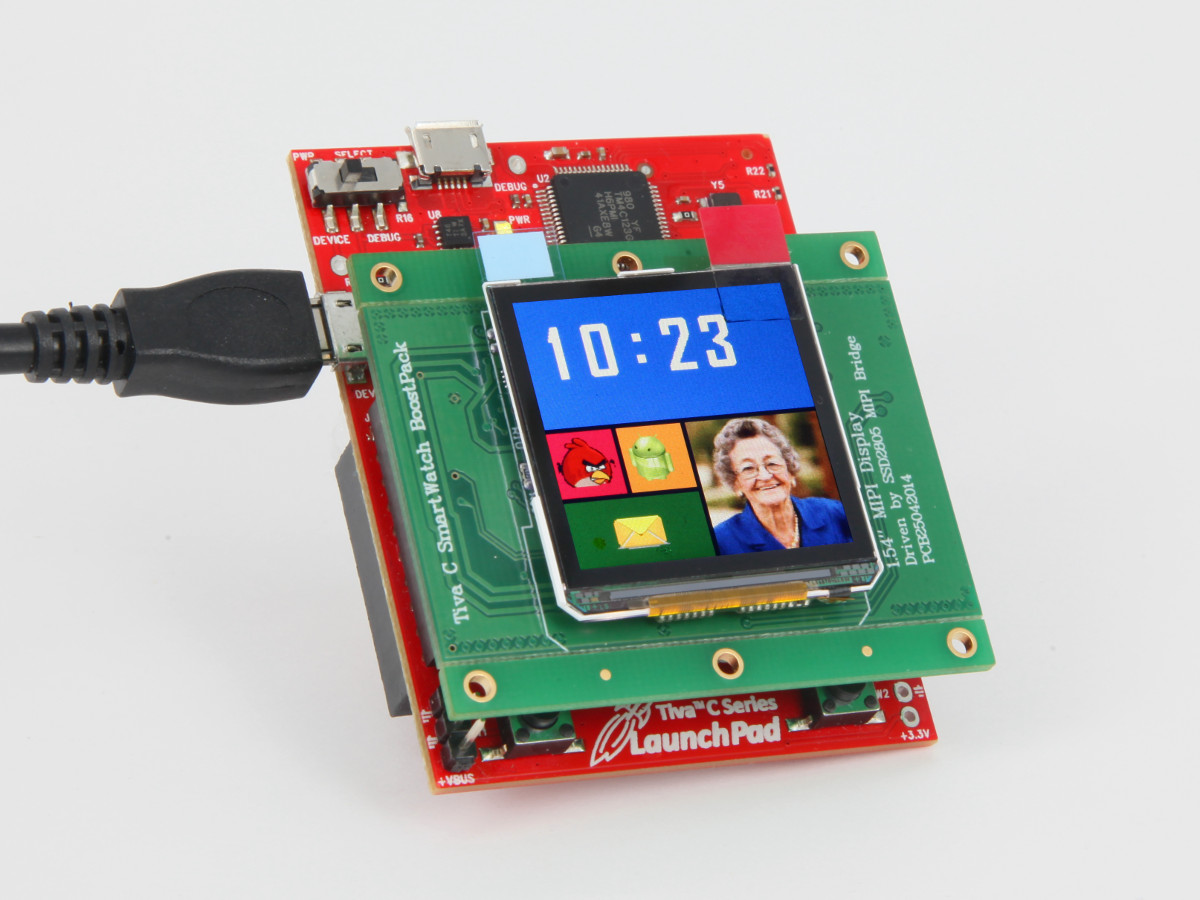

Tiva C SmartWatch BoosterPack

BoosterPack for Texas Instruments Tiva C LauchPad with 1.54" MIPI display
Driven by SSD2805 MIPI bridge IC for 8080 8-bit interface
Use the same 1.54" 240x240 MIPI display as iPod Nano6,
learn how to use this high quality TFT for wearable applications
Freescale MMA8452 accelerometer onboard
Vibration motor as new message notification like a smartwatch

Remarks:
No capacitive touch panel is included
No Tiva C LaunchPack is included. Customer may buy it directly from TI Link




Document & Software

 Doc 01  Schematic 46 KB

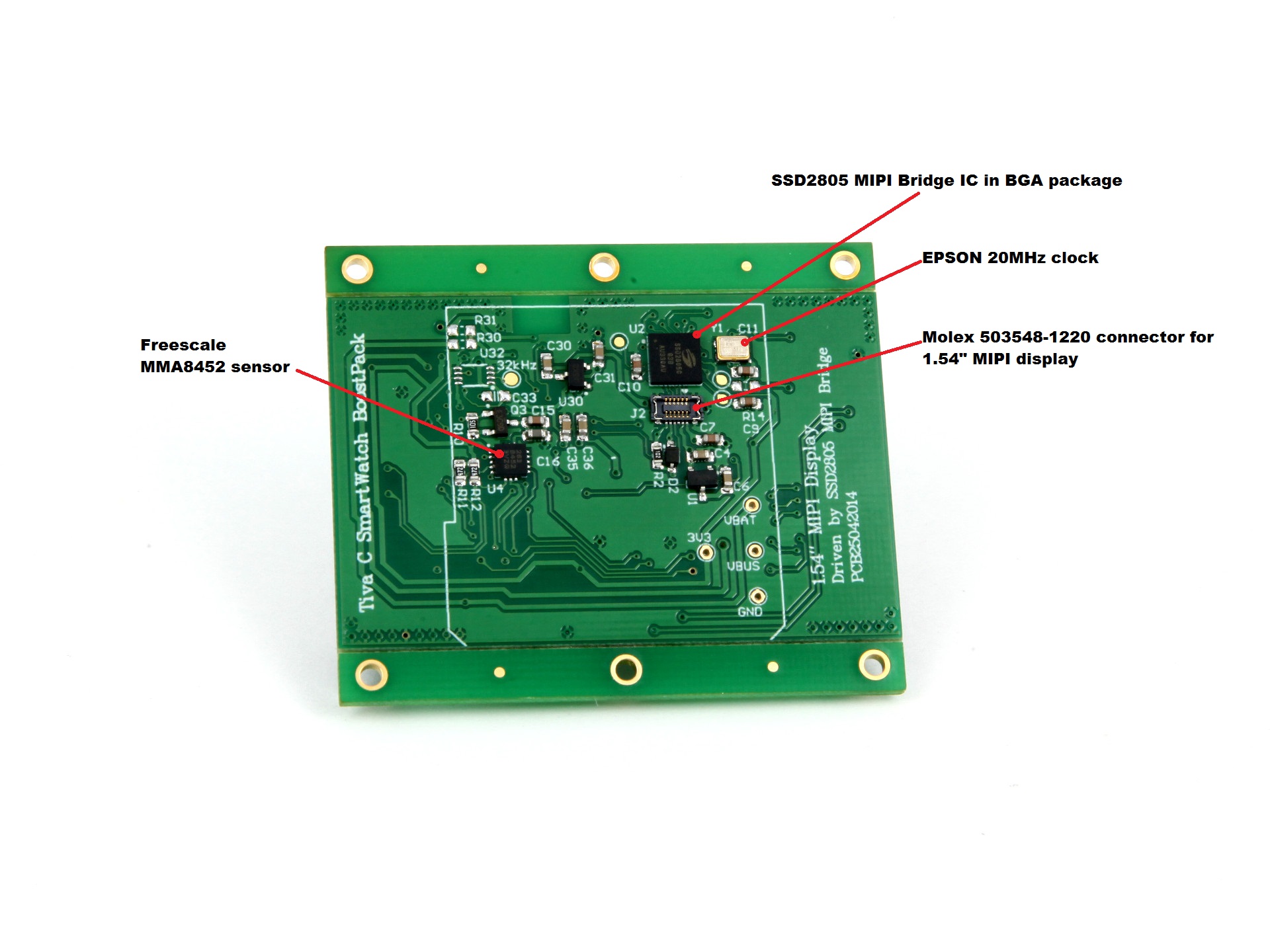

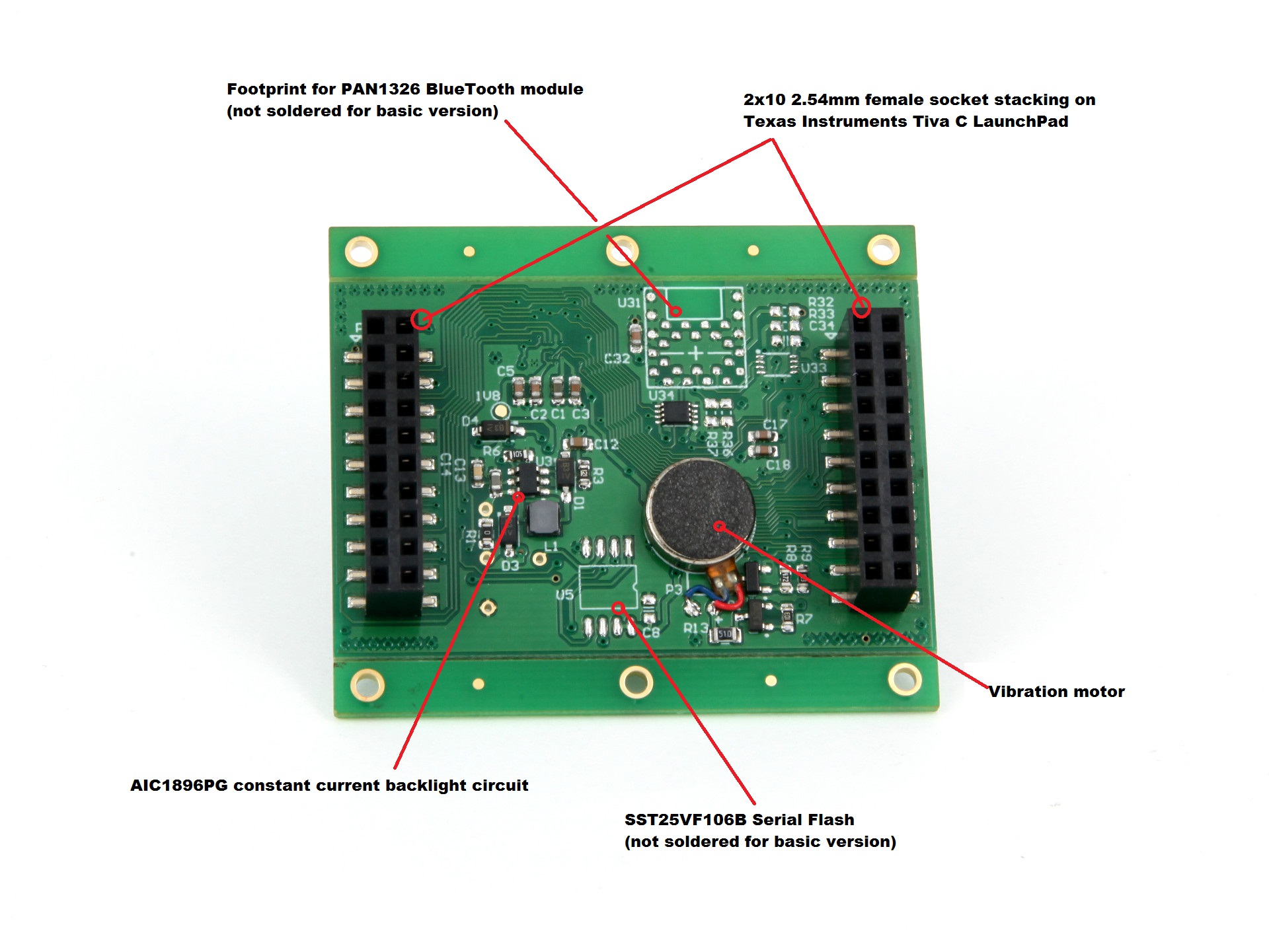

Doc 02 Board views in high resolution
Doc 03 Demo software 451 KB
Doc 04 Video to show the standard demo 9.02 MB wmv












Ordering

Item description Tiva C SSD2805 SmartWatch BoosterPack Basic
Part number EK-TM4C123GXL-D2805-Basic
Price US$49.00   Package contents
  Now US$39.00 !

Freight charge US$6 for registered air parcel** for all countries
  **Standard shipping method is registered air parcel
  Shipping time varies from 2-4 weeks
  email us to order if a faster service by EMS / DHL is required

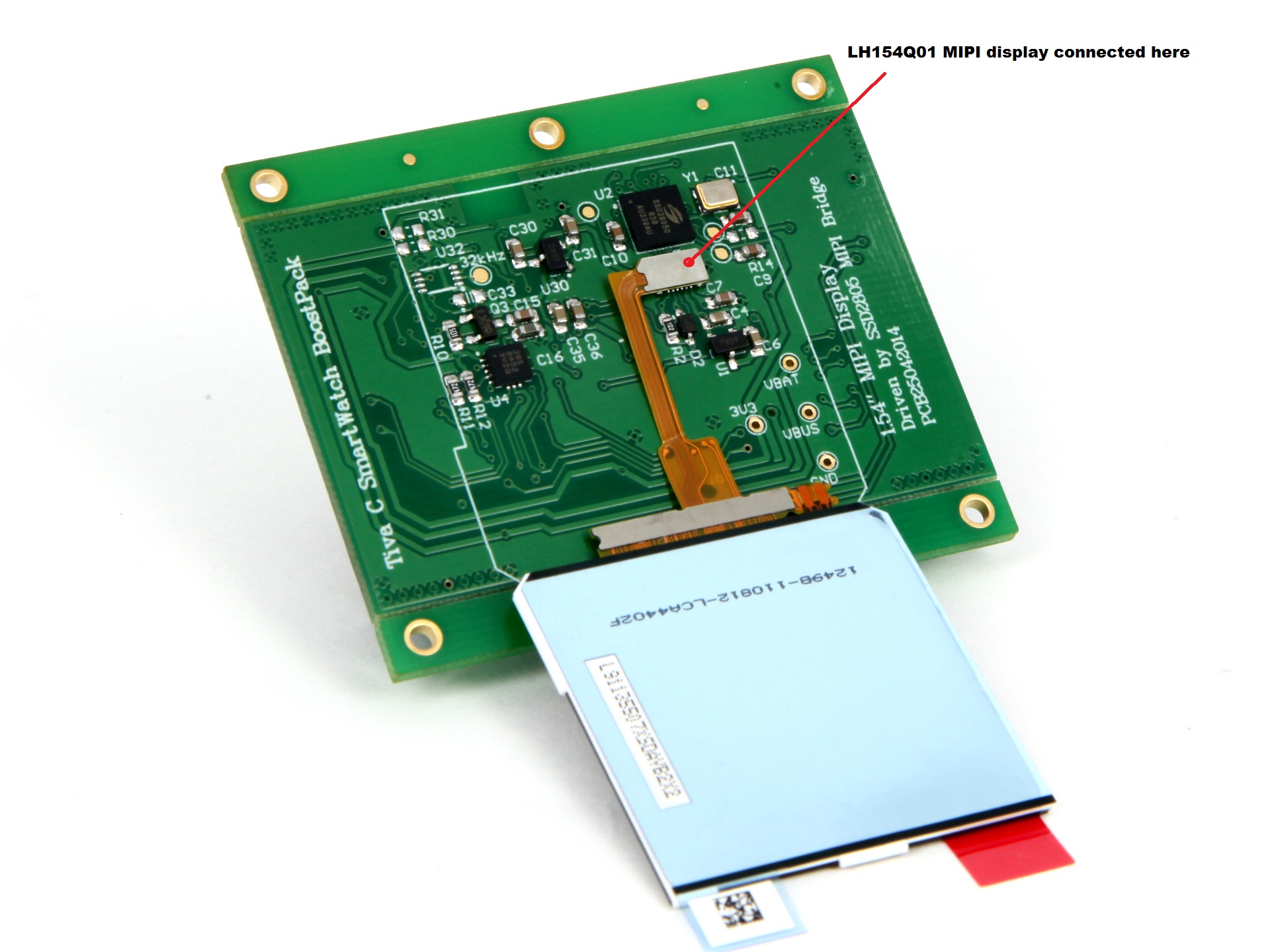

Optional Items LH154Q01 1.54" MIPI Display
  US$9.00   Package contents

  SSD2805 MIPI Bridge Breakout Board
(PCB revision 27092013)
  US$49.00 Package contents

  SSD2805CG39R
  US$4.00 Link

  Microchip compatible EVKs  Link
