3.5" QVGA 16.7m color TFT LCD Module Evaluation Kit

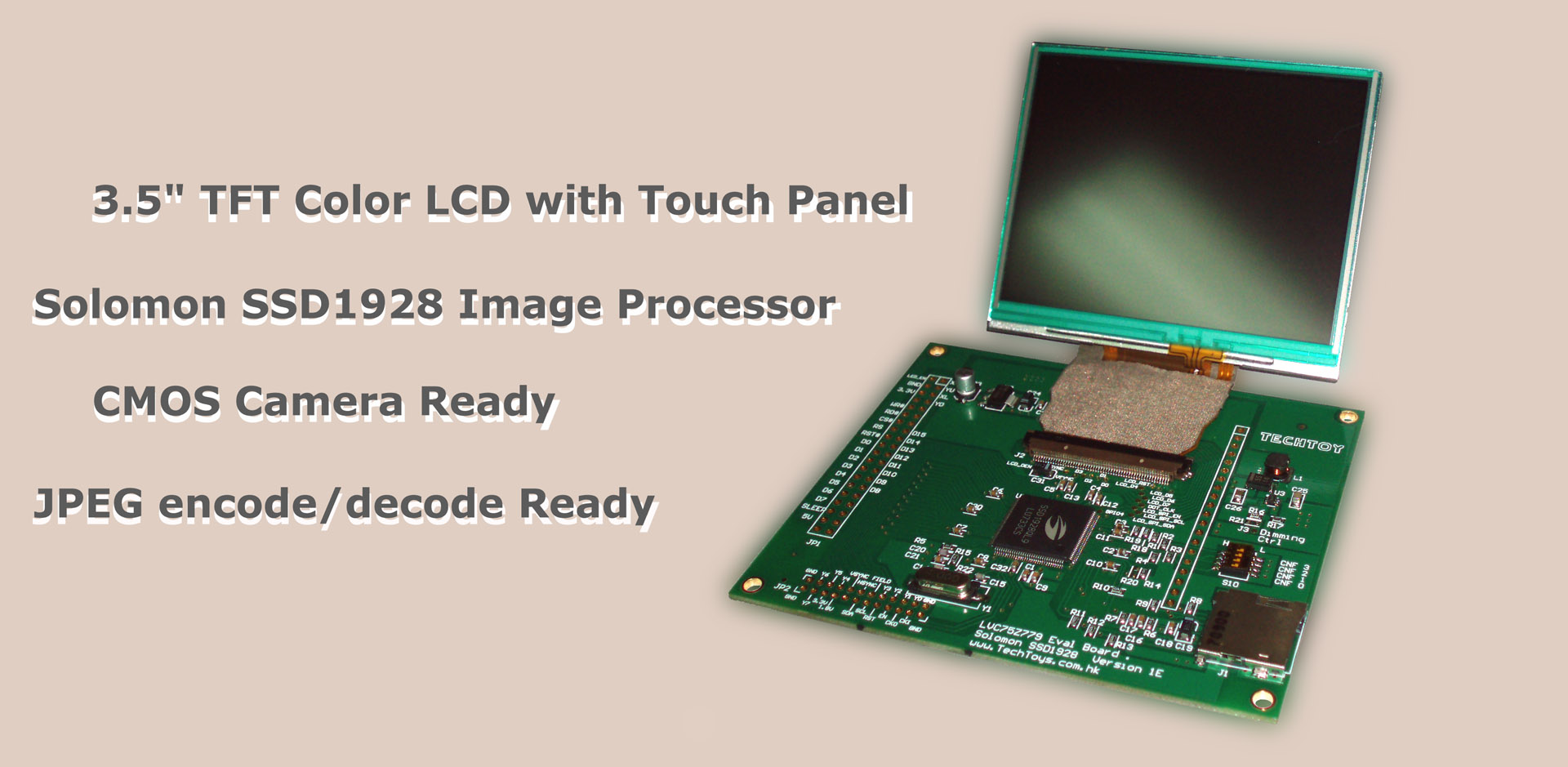

3.5" QVGA 16.7 million color TFT-LCD module with Touch Panel integrated
240*RGB*320 pixels
8-bit or 16-bit interface for microcontrollers
Onboard Solomon SSD1928 Image Processor
CMOS Camera interface
SD Card interface for jpeg images encode and decode
Single 3.3V operation
95mmx80mm, 1.6mm thickness FR-4 PCB
Standard 2.54mm header for microcontroller connection
Standard 2.00mm header for CMOS camera connection
CD-ROM supplied for critical datasheet

Remarks: Patch and the remedy link

Hyperlink to Solomon-Systech link



Document & Software


Doc 01 Schematic (Rev 1E) 43 KB



Doc 02 Data sheet of LCD module 365 KB
Doc 03 User Guide (updated on 31 Dec 08) 730 KB
Doc 04 Data sheet of Solomon SSD1928 link 273 KB
Doc 05 A port for Microchip Graphic Library (Version 20122008) 611 KB
Doc 06 Evaluation board for Microchip PIC24/32
Full source code for over 6 projects available
  link
Doc 07 Evaluation board for ARM NXP LPC2103   link
Doc 08 Example code for Microchip PIC18xxx & CMOS camera (ver. 19012009) 204 KB
Doc 09 1.3MPixel CMOS camera interface   link
Doc 10 MicroSD interface (firmware WIP)
Doc 11 JPEG Encode/Decode (firmware WIP)
Doc 12 Image Processor for Photo Viewer & GPS 115 KB
Doc 13 Image Processor for Car Entertainment 308 KB


Ordering

Item description 3.5" QVGA 16.7m color TFT LCD Module Evaluation Kit
Part number LVC75Z779 Eval Board (Version 1E)
Price HK$928.00 (US$119.00)

Freight charge US$10 for registered air parcel for all countries

Ordering method
Updated version link

Optional Items OmniVision OV9650 1.3MPixel Color CMOS Camera link
  Development board for PIC18LF4550 link
  Development board for PIC24/PIC32 series link
  Development board for LPC2103 link
  SSD1928QL9 Image Processor link

  *Standard shipping method is registered air parcel
  email us to order if you want to ship by EMS SpeedPost
