MIPI-Touch DVK
MIPI-Touch DVK is a development kit for kick-starting design with MIPI LCDs.

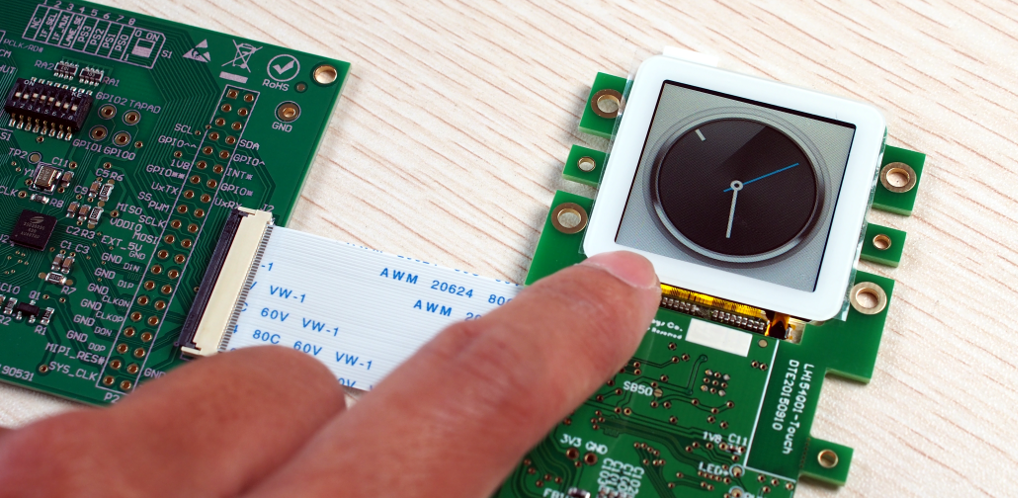

This kit consists of a SSD2805 MIPI-bridge board and a
1.54" 240x240 MIPI LCD with Capacitive Touch Panel (CTP) integrated.
 nRF8001 Bluetooth Smart Connectivity IC is onboard of the application
module for wearable application development.
Firmware example includes TouchGFX port for STM32F429 Cortex-M4 MCU
and LittlevGL port for ESP32.
TouchGFX is a software framework to let you create sophisticated GUIs
of today's smartphone standard without overhead of using Linux or Android.
Smooth animation is acheived by double buffering with low-resource
hardware with or without a RTOS.
TouchGFX graphical framework in YouTube below
(Porting guide for Atollic TrueSTUDIO and Keil in Doc 09 & Doc 10)
It is not limited to TouchGFX. Interface with ESP32 with an open source graphical framework LittlevGL is also available. Full source code can be downloaded from a link in this blog.


Document & Software

 Doc 01  User's Guide (read me first)
SSD2805 breakout board has been updated to DTE20190531, and there is no nRF8001 soldered on 1.54" MIPI LCD module		 2.5MB
Doc 02 SSD2805 MIPI Bridge (Release 3.1C)
Board version DTE20190531		 44 KB


Doc 03 LH154Q01-Touch app. module schematic 84 KB
Doc 04 nRF8001 Bluetooth Smart onboard of LH154Q01-Touch 98 KB
Doc 05 Adapter board for STM32F429 Discovery 22 KB
Doc 06 1.54" LH154Q01 display module 261 KB
Doc 07 SSD2805CG39 application notes 1.9 MB
Doc 08 Interfacing LittlevGL with Espressif ESP32
Full source code available there!		 link
Doc 09 Customerization of TouchGFX in Atollic TrueSTUDIO 740 KB
Doc 10 Customerization of TouchGFX in Keil
Firmware available in Doc 11 and Doc 12		 689 KB
Doc 11 /Firmware/TouchGFX/driver.rar 65 KB
Doc 12 /Firmware/TouchGFX/ClockDemo_240x240.rar 13 MB
Doc 13 Link to download TouchGFX 4.4.1 link

Ordering

Item description SSD2805 MIPI Master Bridge with 1.54" CTP MIPI LCD
(MIPI-Touch DVK)
Part number SSD2805MIPI-LH154Q01-CTP
Price US$88.00 Now US$63.50 packing list
Item descripton MIPI-Touch DVK with STM32F429I-DISCO bundle
(Everything you need to start TouchGFX development)
Part number SSD2805MIPI-LH154Q01-CTP-STM32F429DISCO
Price US$109.00 packing list

Freight charge US$10-15 for registered air parcel** for all countries
  **Standard shipping method is registered air parcel
  Shipping time varies from 2-4 weeks
  email us to order if a faster service by EMS / DHL is required

Optional items Adapter board for STM32F429I Discovery Kit (DTE 20160128)
  Part #: ADPT-STM32F429i-disco-DTE20160128
  Price: US$9.00 packing list

  LH154Q01-CTP MIPI LCD Module
  Part #: LH154Q01-CTP-DTE20150910
Price: US$49.00 Now US$24.50 packing list

  SSD2805 MIPI Bridge Breakout Board Release 3.1C
(PCB DTE 20190531)
  Part #:SSD2805-BO-R3.1C-DTE20190531
  Price: US$39.00 packing list

  LH154Q01-CTP 1.54" 240xRGBx240 pixels MIPI Display
with Capacitive Touch Panel
(LCD may come in black or white color)
  Part #: LH154Q01-CTP packing list
Price: US$18.00

  SSD2805 MIPI Bridge IC in 64TFBGA Package (RoHS)
  Part #: SSD2805CG39R Link
