Evaluation kit of Solomon SSD1928 Image Processor

Supports both RAM-less RGB screen (8-bit serial TFT interface) -and-
smart LCD (8-bit MCU interface) on the same testing platform

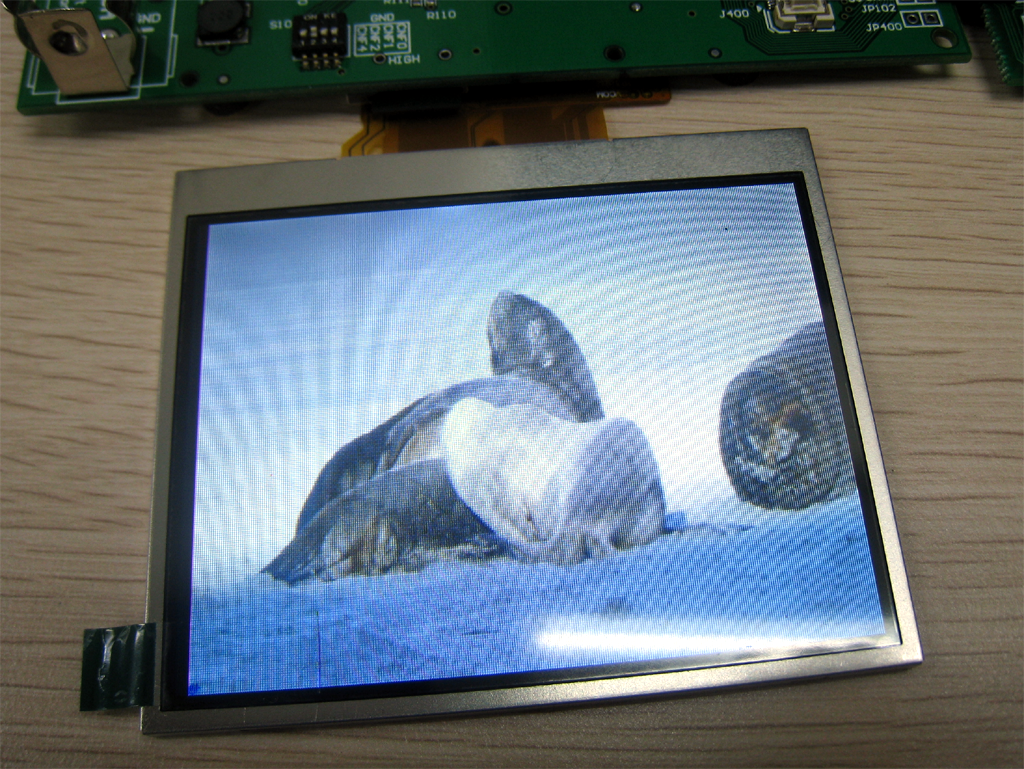

Includes a 3.5" high-brightness QVGA 8-bit serial color TFT

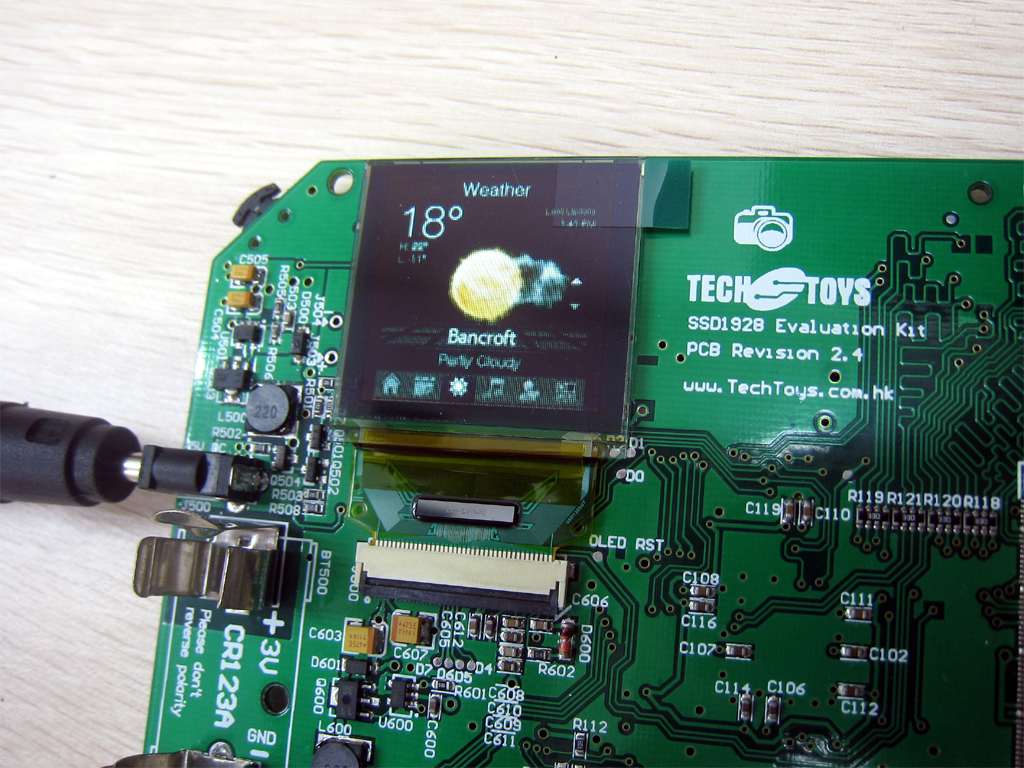

Includes a 1.5" OLED display to demonstrate MCU interface
8-bit or 16-bit host interface selected via dip switch
SD Card interface for image storage
High voltage 20mA LED backlight driver onboard
Circuit for battery operation onboard
2.00mm female header for CMOS Camera interface
Interface to any MCU platform via 2.54mm pin headers

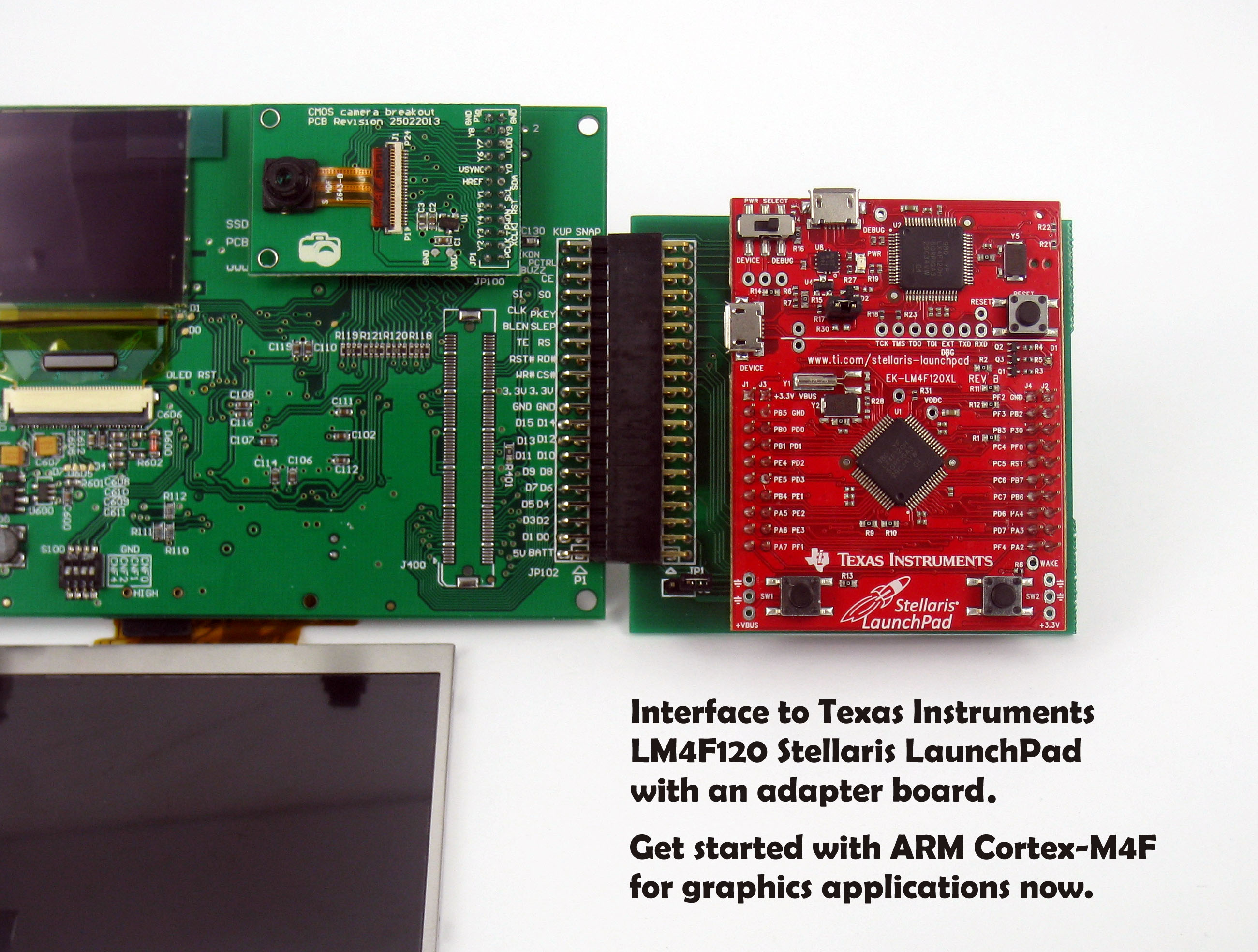

e.g. Stellaris LM4F120

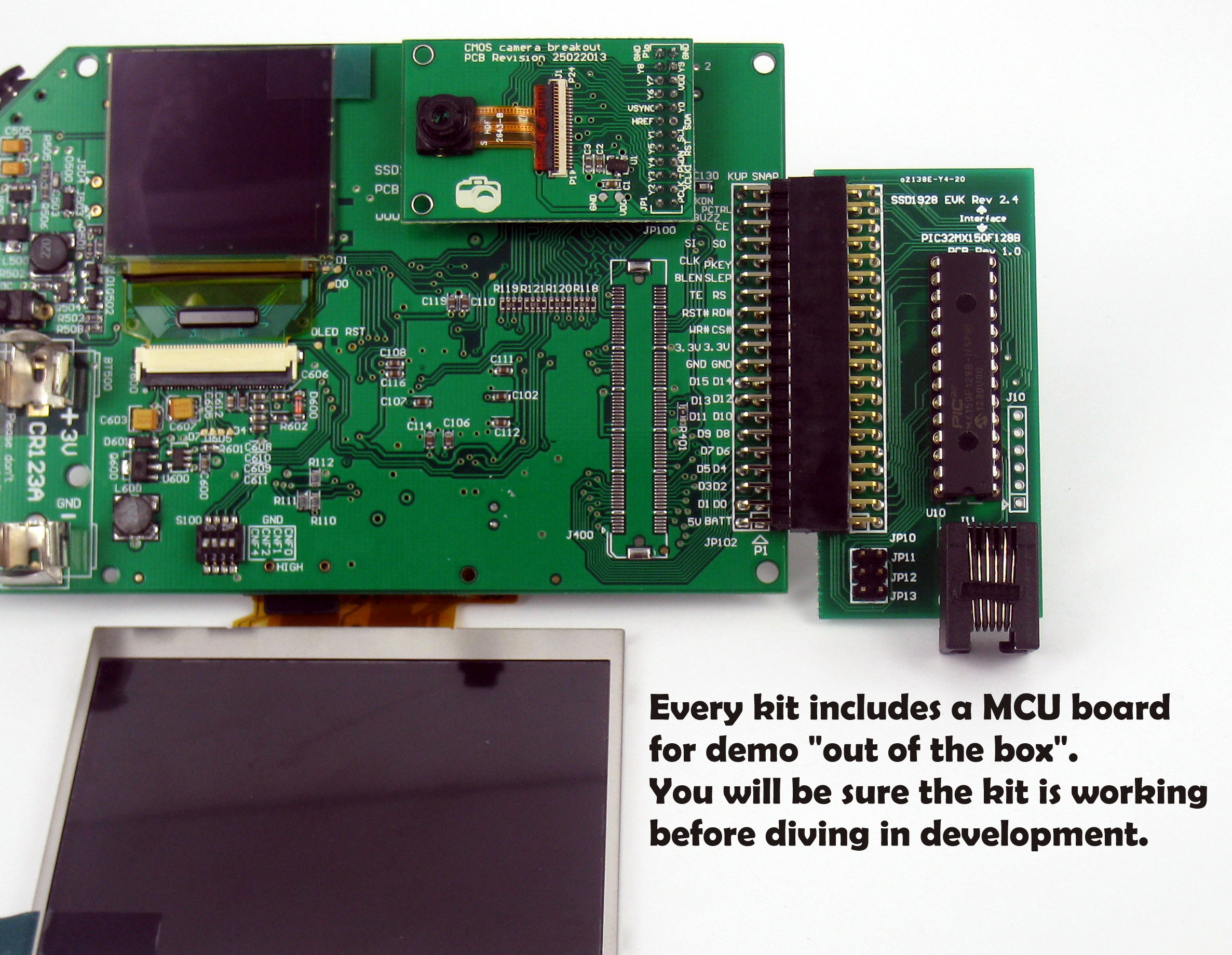

Every kit includes a MCU board with demo program preloaded

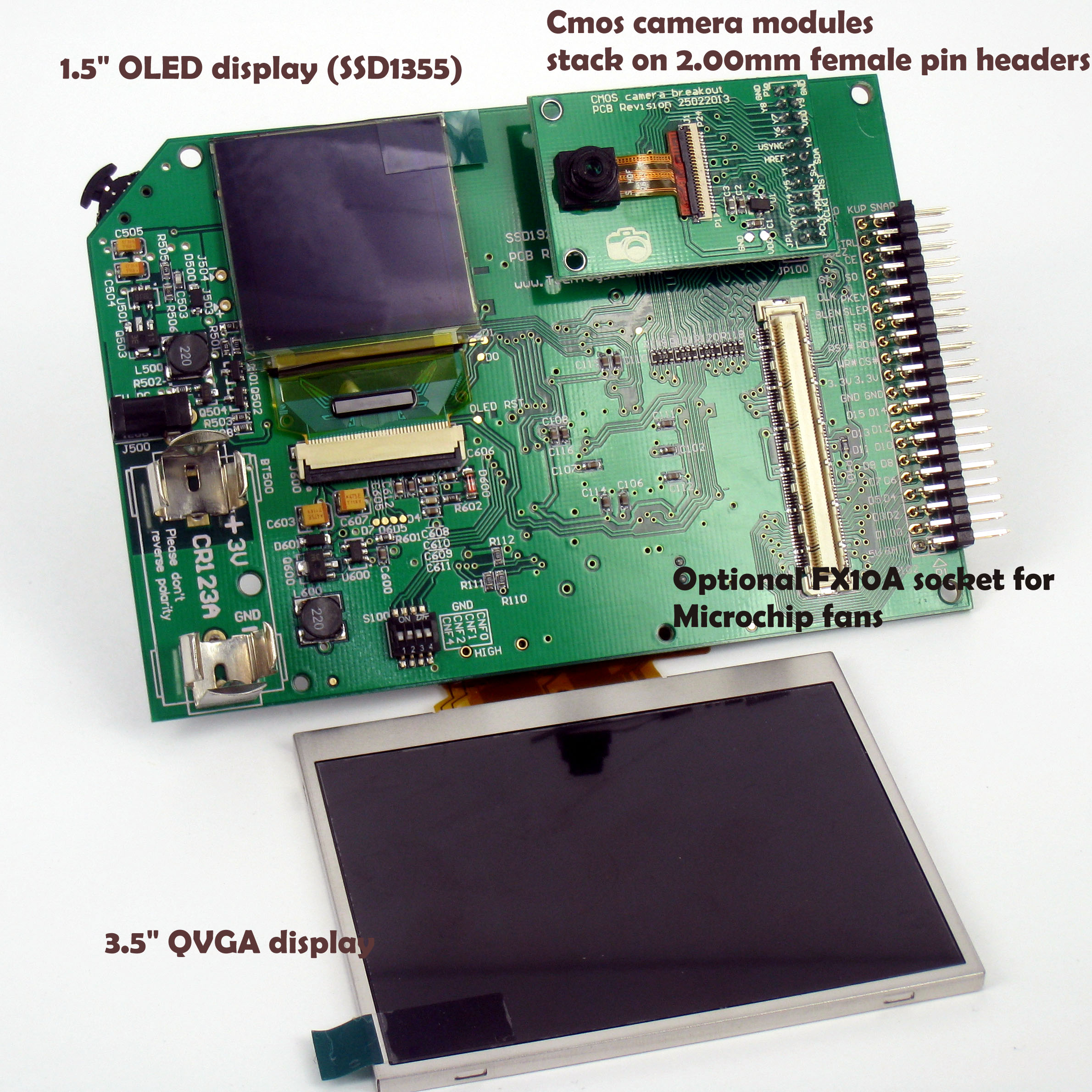

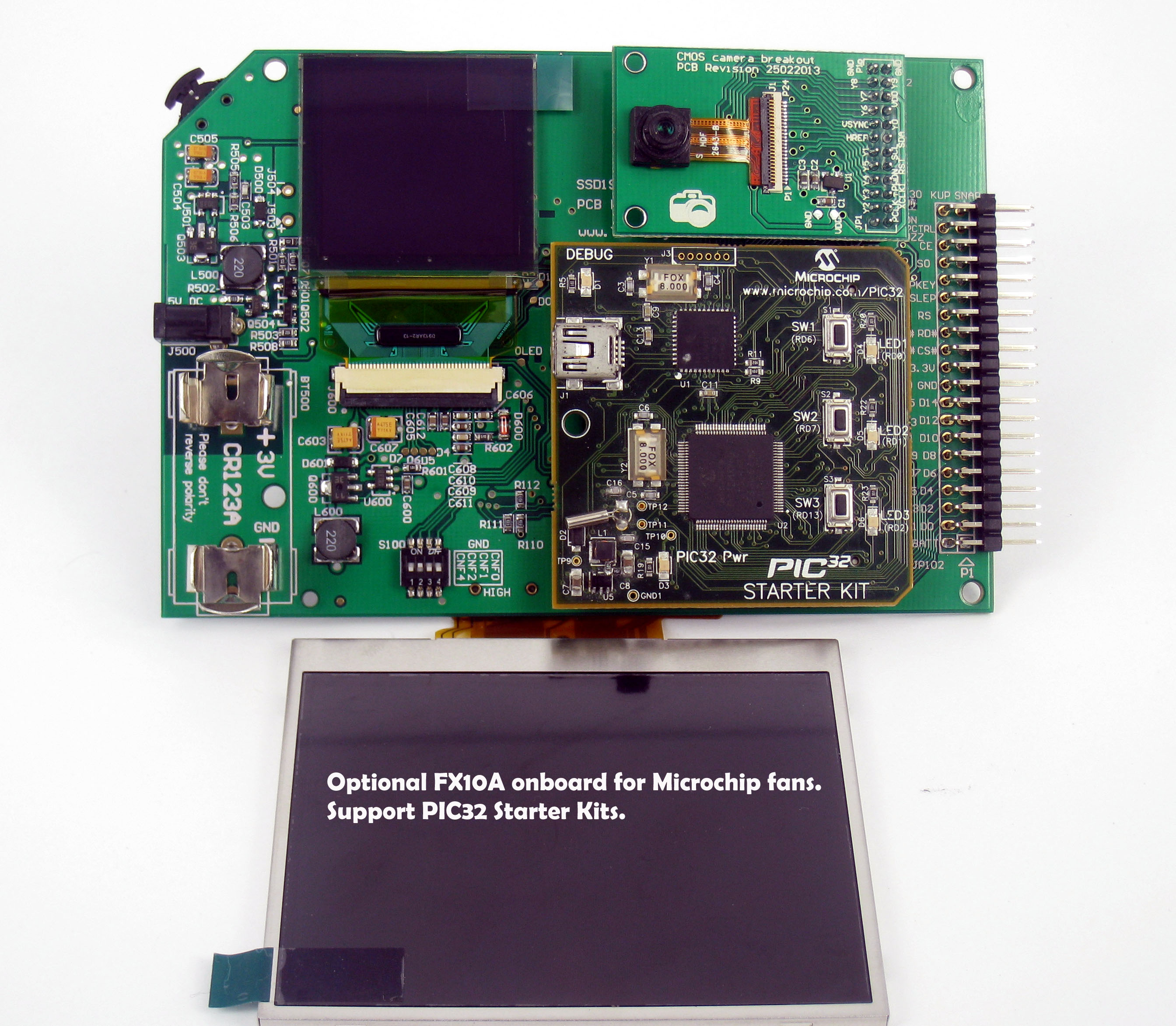

Optional Hirose FX10A socket for Microchip PIC32 Starter kits
Optional 1.3Mpixel (OV9653), 2MPixel (OV2643 & OV2640) camera modules

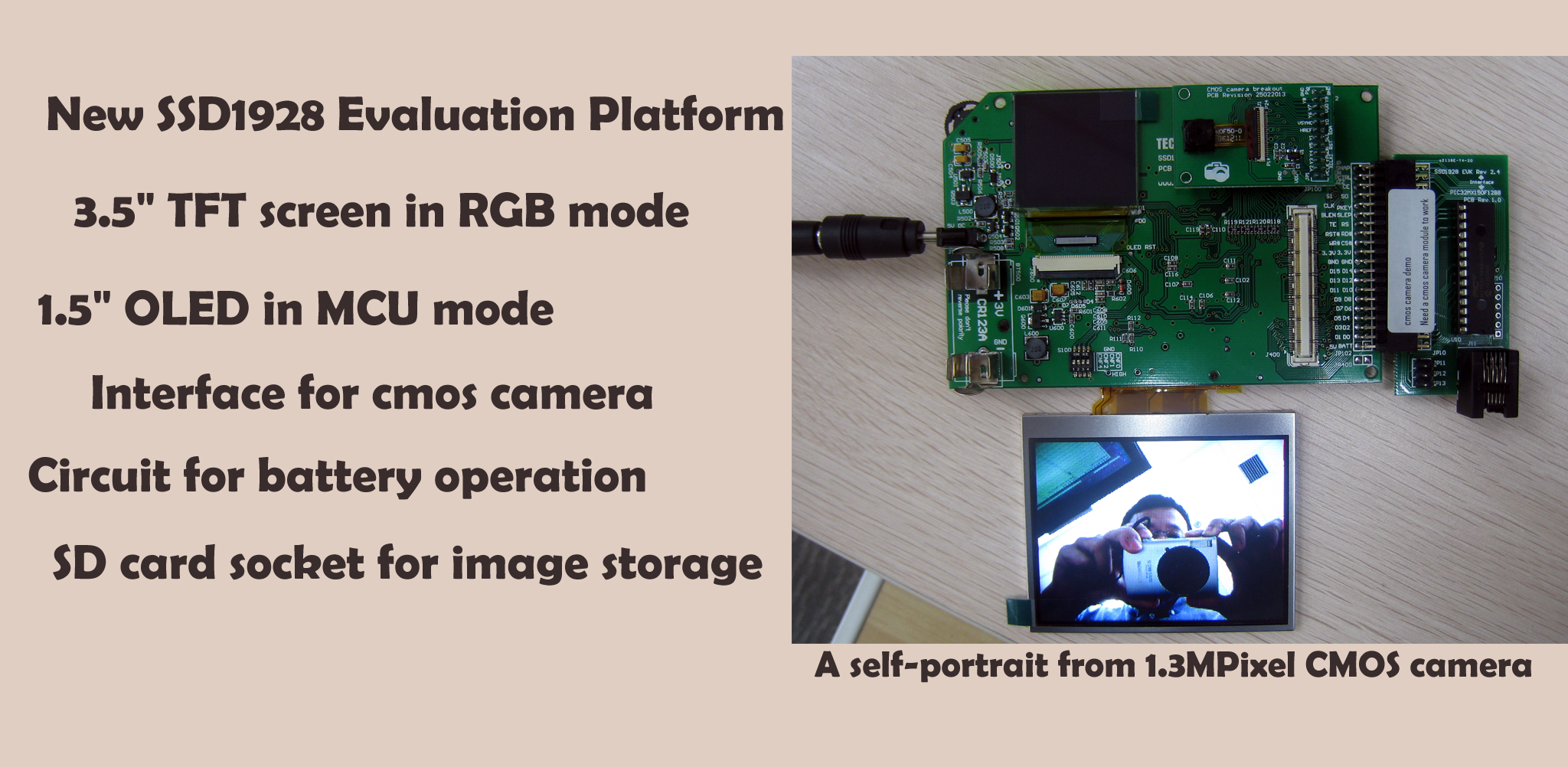

Setup with OLED, 3.5" QVGA TFT, and cmos camera module connected

Document & Software

Doc 01 Schematic (Rev 2.4B) 95 KB


Doc 02 3.5" high brightness TFT screen 1,347 KB
Doc 03 1.5" OLED display 1,949 KB
Doc 04 Edge Detection with SSD1928 and dsPIC 1,430 KB
Doc 05 Firmware (Build 31052013) 2,404 KB
  Remark on running the firmware 639 KB
Doc 06 Schematic of PIC32MX150 MCU host 20 KB
Doc 07 SSD1928 datasheet 273 KB
Doc 08 SSD1928 register map and app note 2,857 KB
Doc 09 SD card connection using SSD192x 258 KB
Doc 10 JPEG decoder using SSD192x 104 KB
Doc 11 JPEG encoder using SSD192x 89 KB
Doc 12 Firmware update to encode and store jpeg images in SD card. Readme.doc browse to 4th Jan 2014 for instructions 46 KB


Item description Evaluation kit for Solomon SSD1928 Image Processor
Part number SSD1928EVK_PCBR24B
Price US$79.00
Item description Evaluation kit for Solomon SSD1928 Image Processor with
  FX10A onboard for Microchip PIC32 Starter Kits
Part number SSD1928EVK_FX10A_PCBR24B
Price US$89.00
Freight charge US$10 for registered air parcel** for all countries
  **Standard shipping method is registered air parcel
  Shipping time varies from 2-4 weeks
  email us to order if a faster service by EMS required
Optional Items Color CMOS Camera link
  SSD1928QL9 Image Processor link
  Jumper cables for 2.54mm pin headers, pack of 20 pcs link
